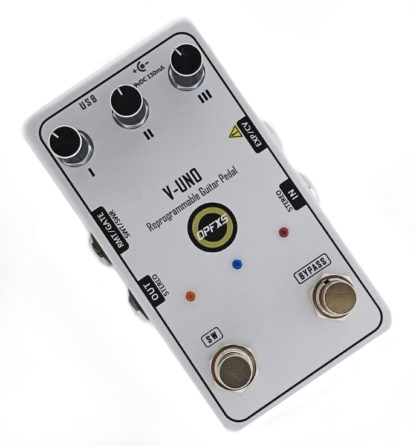

V-Uno is a compact reprogrammable pedal. Connect it via USB to Win, MacOS, Android devices and download one from a list of 30+ effects currently available.

Each effect can be custom configured by assigning knobs, footswitch and external expression pedal to all the available parameters.

The software application can run on Windows, MacOS…

Download software applications here

…and Android devices equipped with USB OTG.

It includes almost all the OPFXS effects made so far (Dig Deep, Cometa and Asteroide) and a lot more.

Check the list of available effects.

Play Video

Control parameters directly from editor or assign them to V-Uno physical controls

V-Uno has 4 types of physical controls which can be assigned to a parameter:

I, II and III knobs

SW footswitch

EXP/CV input to connect an expression pedal or drive with a control voltage

Rremote/GATE inputs to connect up 2 remote footswitch or drive with a control voltage

You can also use one knob to control 2 or more parameters and reverse one of them!

Here we assigned both Speed and Depth to knob I and reversed Depth so that when you turn knob I up Speed goes faster and Depth amplitude decreases

It’s possible to connect up to 2 external footswitches and 1 expression pedal, and they are fully assignable too.

You can also input control voltages from an external source to control parameters.

All the functions can be saved to V-Uno which will recall the uploaded effect with your custom settings at power on.

V-Uno can be powered either from USB and standard 9v DC PSU (center negative).

V-Uno input and output are both stereo (but not all the effects will have stereo configurations).

3 LEDs allows to check the status of the pedal. The red LED is a simple bypass indicator. The orange LED is usually configured to check the status of SW footswitch while the blue LED is effect dependant, it can show the rate of LFO for a modulation effect or light up when a threshold is reached within a dynamic processor.

Different graphics but same features!

Additional information

MIDI input
